Datasheet NIKOS P1003EK P-Channel

Datasheet NIKOS P1003EK P-Channel.
NIKOS-P1003EK-P-Channel
  • Type : P1003EK
  • Type of Transistor: MOSFET
  • Type of Control Channel: P -Channel
  • Maximum Power Dissipation (Pd): 62.5 W
  • Maximum Drain-Source Voltage |Vds|: 30 V
  • Maximum Gate-Source Voltage |Vgs|: 25 V
  • Maximum Drain Current |Id|: 30 A
  • Maximum Junction Temperature (Tj): 150 °C
  • Rise Time (tr): 44 nS
  • Drain-Source Capacitance (Cd): 566 pF
  • Maximum Drain-Source On-State Resistance (Rds): 0.0105 Ohm
  • Package: PDFN5X6P

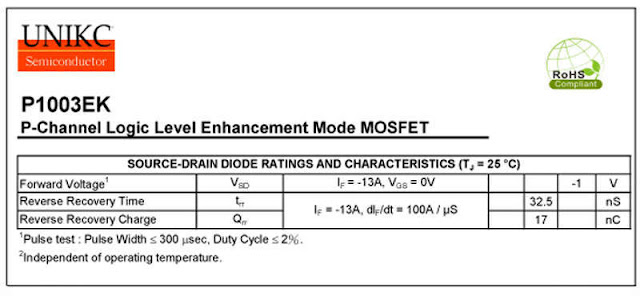

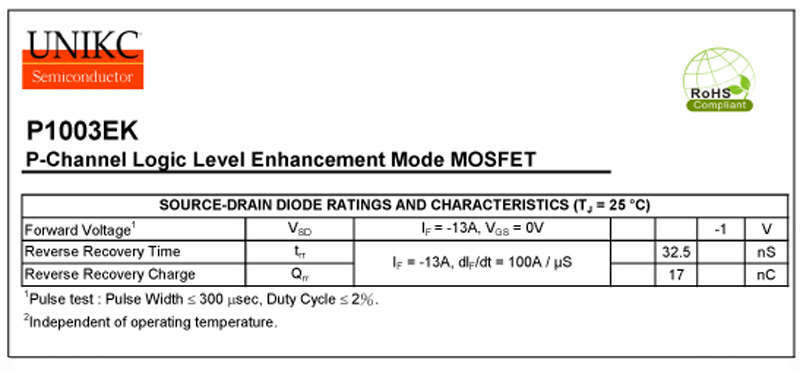

NIKOS-P1003EK-P-Channel-1

NIKOS-P1003EK-P-Channel-2

NIKOS-P1003EK-P-Channel-3

NIKOS-P1003EK-P-Channel-4
Note : Toshiba C800
